Arts and Crafts Bed - Stickley Panel Bed

by John W. Nixon on May 17 2009 18:22

Currently rated 4.1 by 9 people

Currently 4.111111/5 Stars.
1
2
3
4
5

Browse this projects File

There are 2 files in this project available for download

Project Description

This project is a queen sized bed inspired by a Stickley Panel bed. I didn't have anything to go on other than the picture from the Stickley web site, and the overall dimensions. I set to work drawing up my own plans from these two bits of information.

The construction of the bed features through mortise and tenon joints connecting the horizontal rails to the posts. The headboard and the footboard have a frame and panel construction where vertical stiles contain the panels and connect the two horizontal stiles. The top horizontal stiles on the headboard and footboard have a broad inverted V shape that is characteristic of a number of Stickley pieces.

Update 5/30/09 - I am almost done with the first three videos for this series. I cover how to make the panels in part 1, how to make the horizontal rails in part 2, and how to make the vertical stiles and assemble the frame and panel section in part 3. If all goes well, all three parts should be released Sunday night (5/31/09)

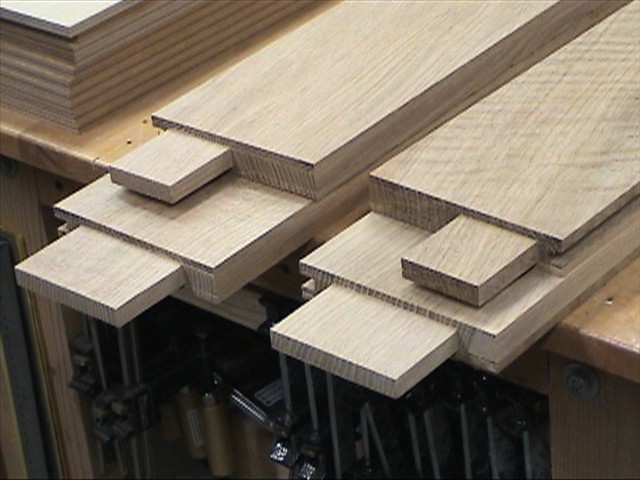

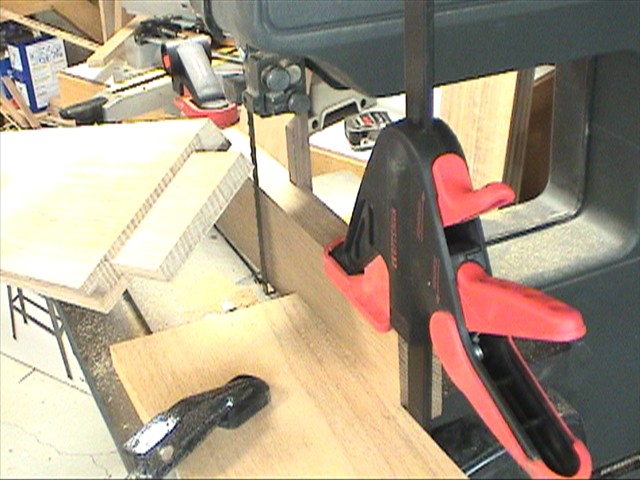

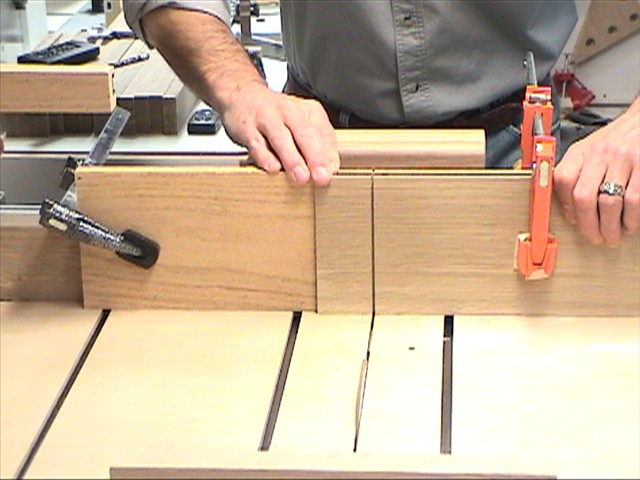

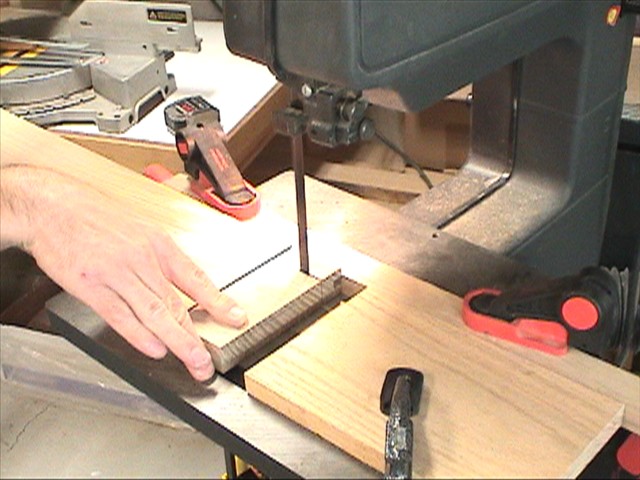

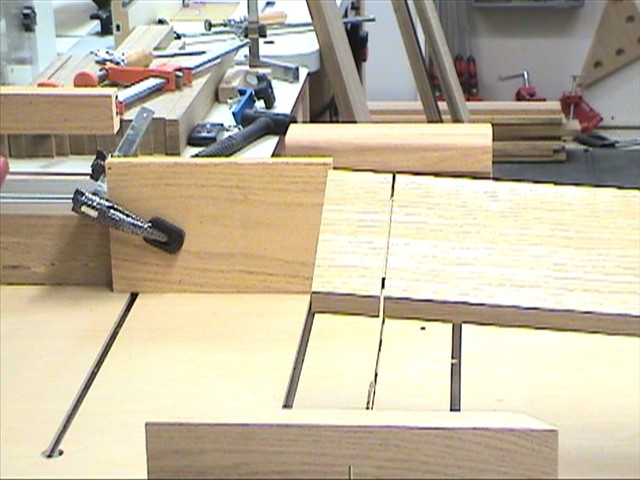

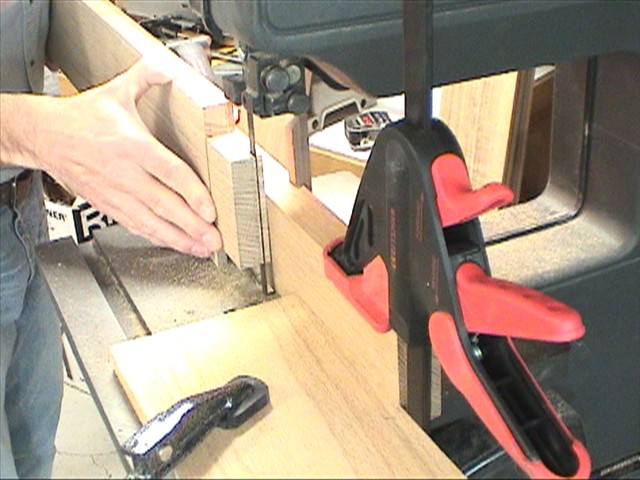

Update 5/24/09 - Work on the bed is progressing nicely. I made the tenons on the horizontal rails using the crosscut sled and the bandsaw. The crosscut sled took care of the shoulder cuts, and the bandsaw cut off the cheeks. Overall, I'm please with this method, but I'd rather be using my tenon jig. The length of these piece prohibited the use of the tenon jig (too tall, they would hit the ceiling, and it would be a little akward).

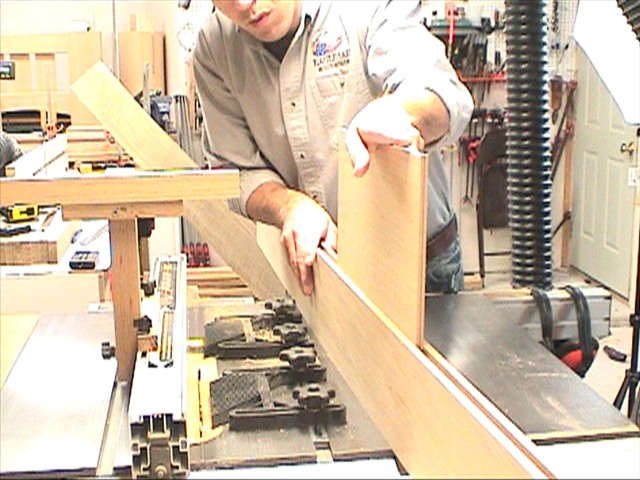

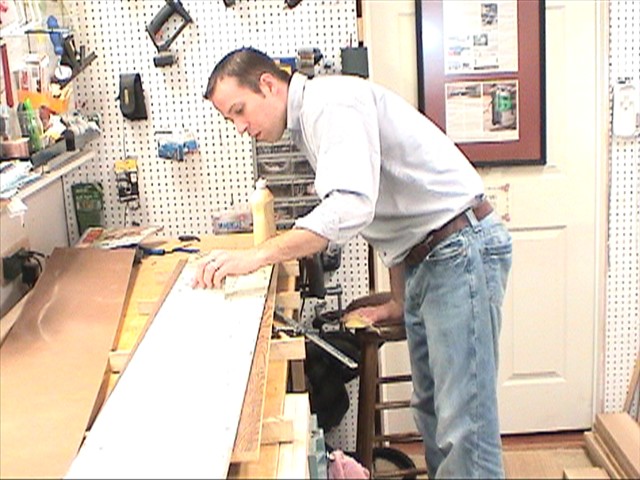

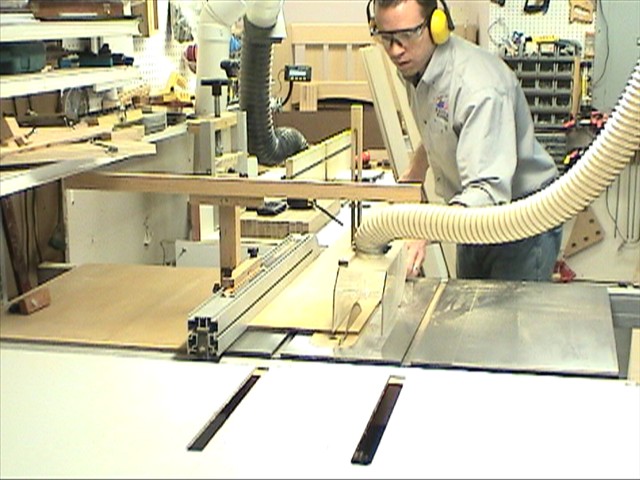

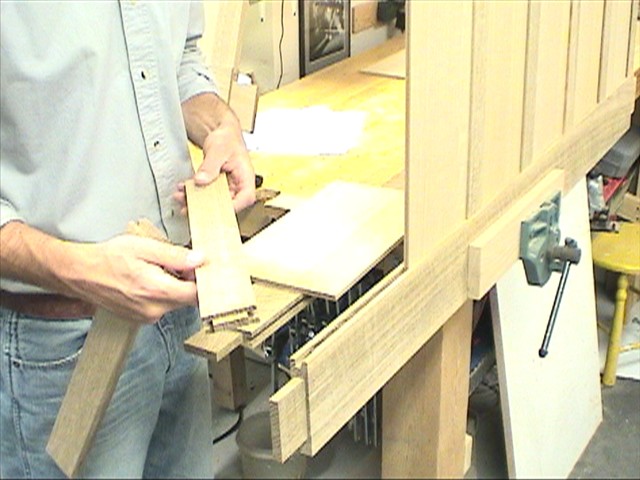

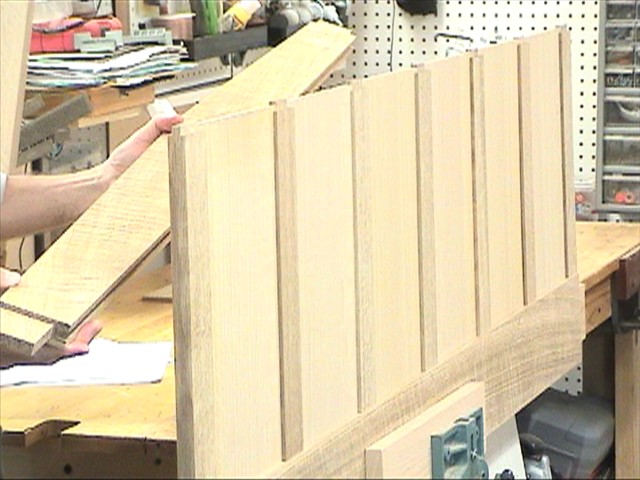

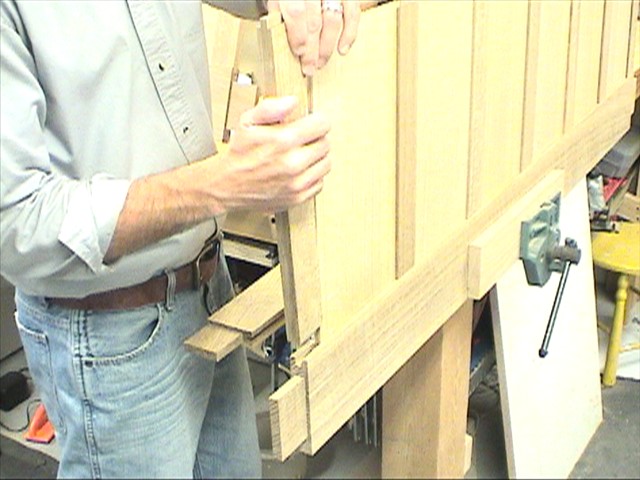

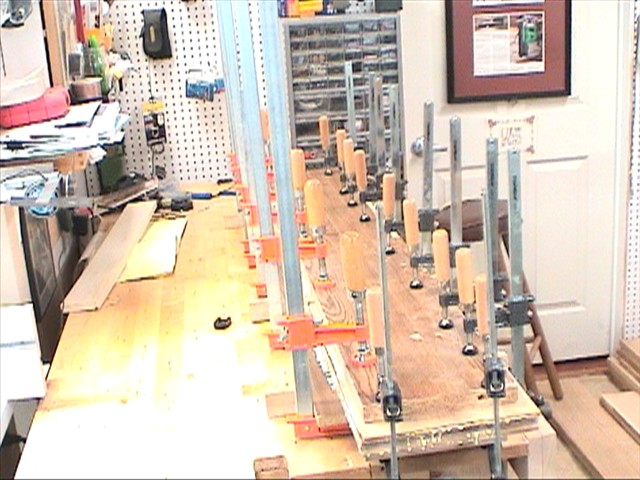

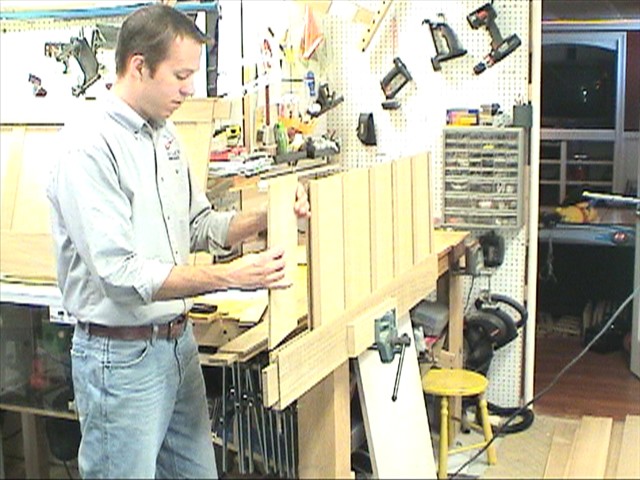

Update 5/17/09 - Filming of this project is underway. I've posted some in progress shots below. Stay tuned, I hope to have the first video in the series out soon. Please post any questions or comments you have about this poject.

Tags: gallery, video

Project | Fine Woodworking

8/25/2010 8:26:04 PM

John W. Nixon

Posted by:

Reply to comment from Tadd who wrote:
John,

What are the dimensions to your ledger boards? Those do not seem to be in the drawings.
...

Hi Tadd, I used 1-3/8 inch square stock for the ledger boards. You could probably make them taller or wider, depending on the type of slats you intend to use. I didn't want the box spring sticking up any farther than necessary, so I tried to keep the ledger boards shallow and the cross slats flush by using the dovetail socket.
