Crosscut Sled

by John W. Nixon on March 20 2005 03:00

Currently rated 5.0 by 1 people

  • Currently 5/5 Stars.
  • 1
  • 2
  • 3
  • 4
  • 5
Project Picture
See what others have voted on Vote for it! No Video

This project does not have a Video

You can cast your vote to have a video created for this project.

View the Photo Gallery

View the Photo Gallery

Check out the pictures of this project.

See what others have voted on Vote for it! No File Downloads

This project does not have any File Downloads

You can cast your vote to have Files created for this project.

Project Description

Update 2/21/2009 -

Check out the next generation of this sled.

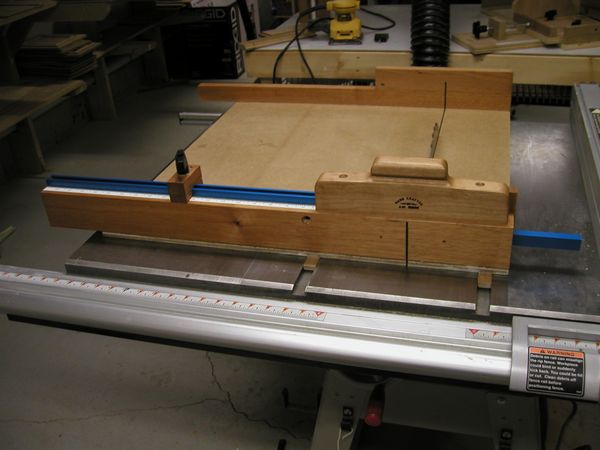

This sled has been good to me, but I find myself using Wood's universal tablesaw sled more and more lately. My sled has a 1/2 thick inch bottom that I made by laminating two pieces of hardboard. It was stuff I had laying around, but it was sort of melamine coated on one side and rough on the other. I thought the melamine side would be less friction, so that side is down in contact with the tablesaw top. I though the rougher side would be good to hold the workpiece a bit.



Here's the quick summary of how I went about constructing it. I made some material for the runners (plane it down until is fits perfect (even a little tight perhaps). I used oak, but if I had it to do over, I'd use the UHMV plastic material. Place the runners in the miter slots and then put on a couple of pieces of double stick tape on top of the runners (or on the bottom of the sled). Without contacting the tape just yet, position the sled's base onto the runners. Now contact the tape to stick the runners to the bottom of the sled. Hopefully you can get the runners out and still have them stuck to the bottom of the sled. I've seen other methods - like super glue and brad nails from above. The point is, you want those runners to be positioned where they should be and then flip the whole thing upside down and secure them for good (I used countersunk screws in the bottom).


After your runners are secured to the base and sliding well, it's time to attach the tall backer board. To get the backer board square, you position your sled's base and raise the running blade so that it cuts through your new sled. Bring the blade up in the middle of the sled. That is, don't cut all the way through the front or rear of the sled base. At this point you can take a framing square against your blade and draw a line square to the blade where your backer board will mount to.

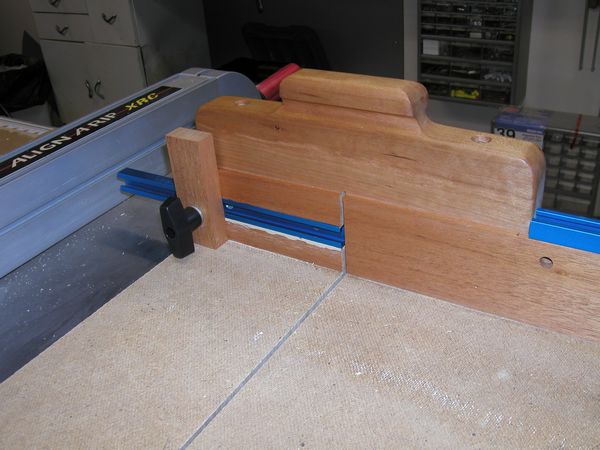

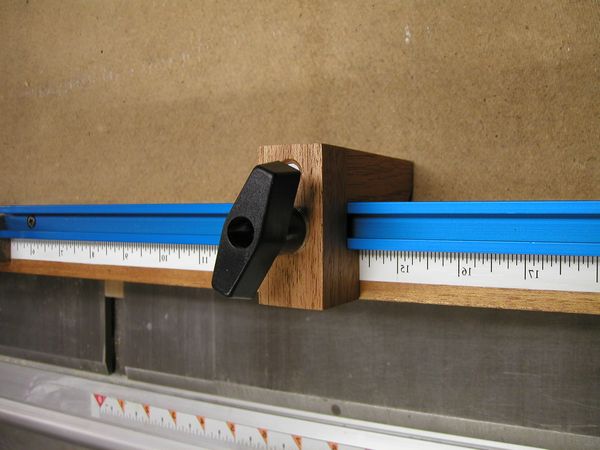

I made my backer board from left over mahogany that I had, but any straight flat hardwood would do. The t-track modifications I made to the backer board have been terrific. There's no substitute to having stop blocks for repeatible cuts.

Comments

11/21/2009 2:28:57 AM
United States
Borst Custom Woodworking
Posted by:
I have made a number of these sleds myself and I think you're doing a great service to fellow woodworkers with your website.
11/14/2009 12:27:56 AM
Posted by:
Reply to comment from Ronnie who wrote:
Is there a DVD that shows how to make a bandsaw sled to resaw small logs (8"-10" in diameter)? I've ...

Hi Ronnie,

WOOD magazine has a free video on this subject.  I think Fine Woodworking may have one as well.  Here's a link to the Wood Magazine video:
www.woodmagazine.com/woodvision/?bclid=1339217207
11/13/2009 10:22:13 PM
United States
Ronnie
Posted by:
Is there a DVD that shows how to make a bandsaw sled to resaw small logs (8"-10" in diameter)? I've got a 17" Grizzley Bandsaw that handles 12"x12"x6" square blanks with a 1" blade easily, but I'm Wanting to resaw small logs.
